Bharat Metal Industries is acknowledged as a manufacturer, exporter & suppliers of Threaded Flange & Stainless steel Flanges (Gr. 304, 304L, 316, 316L) available in a variety or grades, materials, and finishes, in metric and inch sizes. These Threaded Flange are manufacture in different Material of Flanges like SORF Flanges, Carbon Steel Threaded Flanges, Stainless Steel Threaded Flanges, Alloy Steel Threaded Flanges, Duplex Steel Threaded Flanges, Inconel Threaded Flanges, Monel Threaded Flanges, Hastelloy Threaded Flanges, Copper Nickel Threaded Flanges in India & Asia, conform to Slip On specifications.

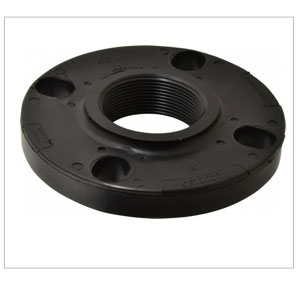

Threaded flanges are widely used in low pressure piping systems, as no welding is involved while connecting the flanges to pipes or other equipment. However, the flange may be welded around the joint after assembly, but it is not considered a satisfactory method of increasing its applications. Threaded flanges are also known as screwed flanges and are similar to slip-on flanges, but the bore is threaded to enable assembling without welding. Threaded pipe flanges are usually used with pipes that have external threads.
Threaded Flange, Threaded Forged Flanges, Screwed Flanges Production Range
Size: 1/2″ (15 NB) to 48″ (1200NB)
Standards: ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings: Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Threaded Flanges: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Threaded Flanges: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Threaded Flanges: ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Threaded Flanges: Duplex, Super Duplex, Nickel Alloys
Flange Face Type: Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services: CNC Machining, Customised Flanges
Diameter : 1/2″ to 24″
Threaded Flange Dimensions
The tables below show the most common sizes but are not exhaustive.
150 LBS
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Height1(H) | Nbr | Holes | Dia.(C) |
| 1/2″ | 90 | 9.6 | 35.05 | 30 | 14 | 4 | 15.87 | 60.3 |
| 3/4″ | 100 | 11.2 | 42.92 | 38 | 14 | 4 | 15.87 | 69.9 |
| 1″ | 110 | 12.7 | 50.80 | 49 | 16 | 4 | 15.87 | 79.4 |
| 1 1/4″ | 115 | 14.3 | 63.50 | 59 | 19 | 4 | 15.87 | 88.9 |
| 1 1/2″ | 125 | 15.9 | 73.15 | 65 | 21 | 4 | 15.87 | 98.4 |
| 2″ | 150 | 17.5 | 91.94 | 78 | 24 | 4 | 19.05 | 120.7 |
| 2 1/2″ | 180 | 20.7 | 104.65 | 90 | 27 | 4 | 19.05 | 139.7 |
| 3″ | 190 | 22.3 | 127.00 | 108 | 29 | 4 | 19.05 | 152.4 |
| 3 1/2″ | 215 | 22.3 | 139.70 | 122 | 30 | 8 | 19.05 | 177.8 |
| 4″ | 230 | 22.3 | 157.22 | 135 | 32 | 8 | 19.05 | 190.5 |
| 5″ | 255 | 22.3 | 185.67 | 164 | 35 | 8 | 22.22 | 215.9 |
| 6″ | 280 | 23.9 | 215.90 | 192 | 38 | 8 | 22.22 | 241.3 |
| 8″ | 345 | 27.0 | 269.75 | 246 | 43 | 8 | 22.22 | 298.5 |
| 10″ | 405 | 28.6 | 323.85 | 305 | 48 | 12 | 25.40 | 362.0 |
| 12″ | 485 | 30.2 | 381.00 | 365 | 54 | 12 | 25.40 | 431.8 |
| 14″ | 535 | 33.4 | 412.75 | 400 | 56 | 12 | 28.57 | 476.3 |
| 16″ | 595 | 35.0 | 469.90 | 457 | 62 | 16 | 28.57 | 539.8 |
| 18″ | 635 | 38.1 | 533.40 | 505 | 67 | 16 | 31.75 | 577.9 |
| 20″ | 700 | 41.3 | 584.20 | 559 | 71 | 20 | 31.75 | 635.0 |
| 24″ | 815 | 46.1 | 692.15 | 663 | 81 | 20 | 34.92 | 749.3 |
